How to Make a Wood TV Console

Learn how to make a  Wood TV Console. I decided to make a newer version of an old TV console build I had done, but had not recorded on video. This new TV Console looks great, is a very quick build, and adds functional storage. Be sure to check out the in depth plans with a complete wood and cut list here. Watch the video below and share with others!

My TV Setup includes

Samsung 60 Inch LED SMART TV – Has Pandora, Netflix, Amazon Instant, Spotify, MLB, and many other Apps. Love it!
Articulating, Swivel, and Tilt TV Mounting Bracket – Heavy Duty and works great.
Sony STR-DH550 Receiver/Amp – Plenty powerful, lots of HDMI ports, and affordable.
Sony SA-W3000 Subwoofer – Plenty powerful, good bass, makes it feel like a movie theater.
Check out our video How to Hide TV Wires to learn more about the mounting, install, and wiring of the TV into the wall. I use a Wiring Kit – this one thats made by PowerBridge TSPBIW Kit

Tools Needed

Miter Saw​– I’d recommend a 12 inch sliding, miter saw.
Drill​– I use R​yobi drills.​
Orbital Sander​– Ryobi makes a nice one.
Nail Gun
Tape Measure, Ruler, Pencil
Eye and Ear protection

MY LATEST VIDEOS

Optional:

Circular Saw – Could be used in place of a miter saw
Table Saw
Clamps​– Clamps are helpful for any project. I love to use JackClamps
Speed Square

Supplies Needed

Wood – Which we go over in the Plans
Wood Glue – I recommend Gorilla Glue
Minwax Dark Walnut Stain and Polyurethane
Sandpaper
1 ½” Kreg Screws
1 ¼” Kreg Screws
1 ¼” Wood Screws
2” 18 gauge Nails

Approximate Total Cost: $135

The TV Console can be built for around $135 in materials cost. This is the cost for the lumber and other basic supplies, but does not include things we’ll assume you may have around the shop – *Note: This doesn’t include things you may already have around the shop, including: screws, staples, nails, glue, sandpaper, finish, etc.

TVConsolePlans14

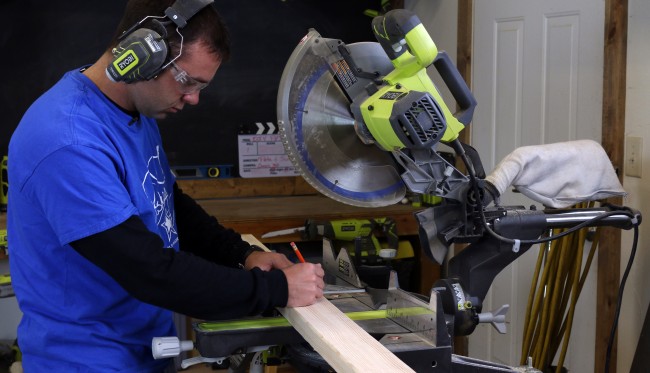

Cut the Wood

We'll start this project by making out Main Frame’s cuts on the miter or circular saw. Refer to the cut list in the plans for dimensions of the Main Frame – Legs, Stretchers, and Side Stretchers. If you prefer to do all cutting at once, feel free to make the other cuts, listed above, now. We’ll start assembly next.

tv console, tv, console, wood console, woodworking, how to

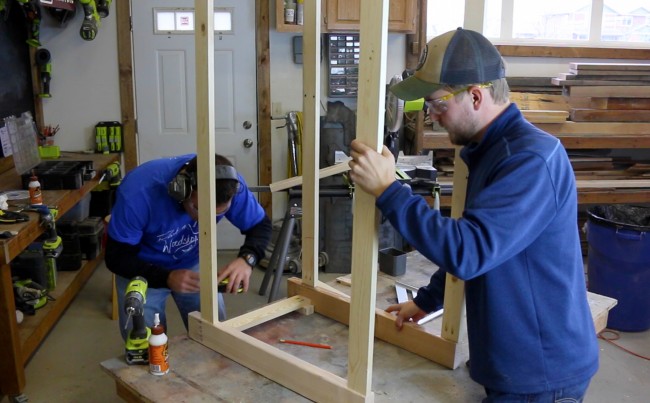

Assemble the Main Frame

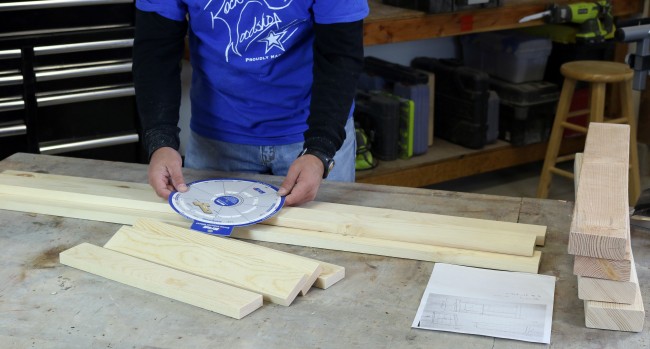

After you’ve made the cuts for the Legs, Stretchers, and Side Stretchers we can start assembly. These pieces will go together with pocket hole joinery done on the Kreg Jig. For the pocket holes going from stretchers to legs, set your Kreg Jig and Bit at the ¾” setting. Use 1 ½” Kreg Screws and wood glue to assemble it all, being sure that everything is square.

tv console, tv, console, wood console, woodworking, how to

tv console, tv, console, wood console, woodworking, how to

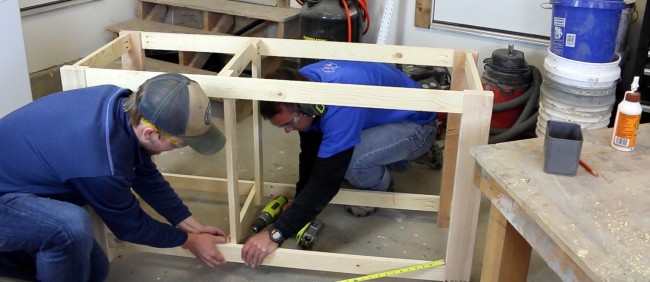

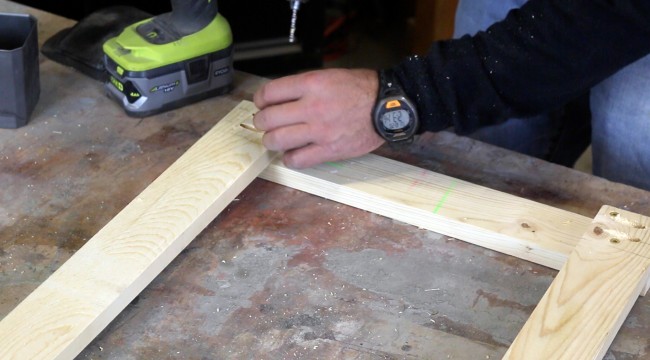

Build and Install Shelf Divider

Now we will build the divider piece shown below. The dimensions for the dividers are shown in the plan blueprints here. The shelf divider installs 28 ¼” over from the inside of the leg, I gave the left side looking straight on at the console the 28 ¼” room. The shelf divider then goes together with 1 ¼” screws and installs into the main frame with ¾” pocket holes and 1 ¼” Kreg Screws.

tv console, tv, console, wood console, woodworking, how to

tv console, tv, console, wood console, woodworking, how to

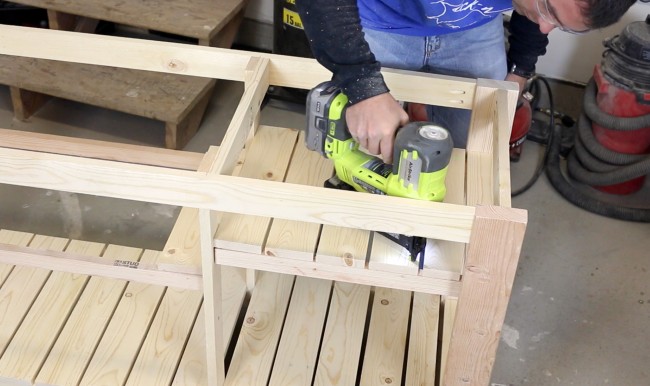

Attach the Lower Shelf Slats

Grab your lower shelf slat pieces and prepare to install them. For this, I’d recommend Ryobi’s 18 Volt Nail Gun with 2”, 18 gauge nails. Place the boards into place, referring to the plans for the custom edge and end piece sizes. Glue and nail them all into place.

Build the Two Upper Shelves

We’ll start the two upper shelf process by building their frame that holds the slats and installs into the main frame and divider. Kreg the shelf frame together with glue and 1 ¼” Kreg Screws and prepare to install them.

tv console, tv, console, wood console, woodworking, how to

Install the Side Panels

Now it's time to put the side panels into place, we’re almost done with the TV Console! You should have two 1×6 boards and one cut down to actual ¾”x5” for the side panels. Put them in place and tack with nail gun to temporarily position, we’ll add screws from the back for extra support. Refer to the plans for more info regarding this, we’re simply pre drilling and screwing in 1 ¼” wood screws into the side panels.

tv console, tv, console, wood console, woodworking, how to

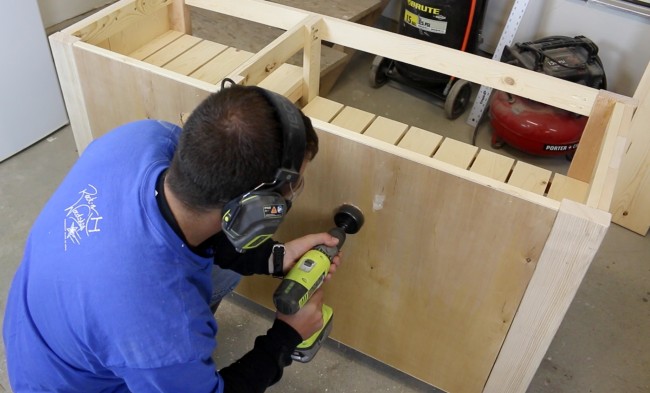

Install the Back and Tabletop

The last step of this project is to attach the back and tabletop to the TV Console. The back is a piece of plywood that we'll cut holes into for the wires to feed through. The tabletop consists of a 1×10 and a 1×12. You can kreg the two together on the underside if desired. The tabletop should have a 1” overhang on the left and right side of the main frame. Glue all surfaces that connect the frame and the tabletop and then tack it into place with nails. Let everything dry/cure and then sand/prep it all for finishing!

tv console, tv, console, wood console, woodworking, how to

tv console, tv, console, wood console, woodworking, how to

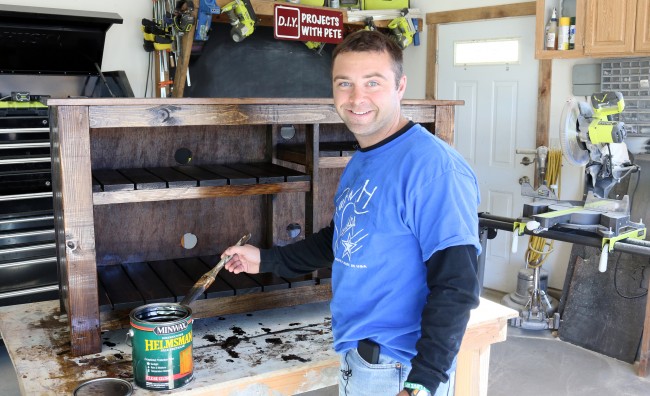

Stain and Seal the Project

I used Minwax’s Dark Walnut stain for this TV Console, I love the color and look it achieved here. For a similar look, use that stain and add two coats to ensure full coverage. After the stain has dried, follow through with a coat of Minwax’s Polyurethane over the whole project – this really seals it all in and adds a nice gloss to the project. Let everything cure and you’re done!

tv console, tv, console, wood console, woodworking, how to

Install TV Components and Enjoy

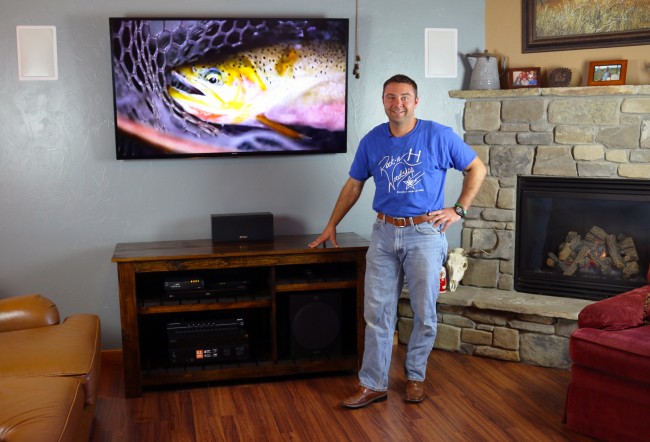

You're done – almost! Bring your TV Console inside and install all of your tv components, sound system, dvd player, etc. Sit back, admire your work, and enjoy! Cheers from Montana.

tv console, tv, console, wood console, woodworking, how to
